FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

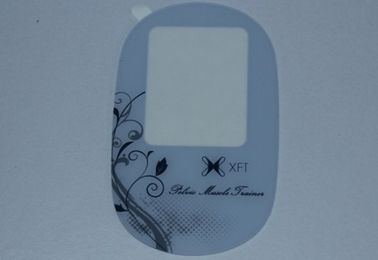

Hình ảnh lớn : FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

Thông tin chi tiết sản phẩm:

Place of Origin:	Dongguan,Guangdong, China
Hàng hiệu:	Foundation
Chứng nhận:	Raw Material Pass RoHS, SGS Test
Model Number:	HC-MSO-305

Thanh toán:

Minimum Order Quantity:	50/pcs
Giá bán:	Negotiable
Packaging Details:	Each in Polybag, Then in Carton or as Per Request
Delivery Time:	sample time:9days,mass production:12-15days
Payment Terms:	L/C,T/T
Supply Ability:	100, 000PCS/Month

Tiếp xúc

Chi tiết sản phẩm

Điểm nổi bật:

custom membrane switches

membrane switch and panel

FCI / Molex 35V Custom Membrane Switch High Reliability Tactile For GPS

Product Description

All our circuit, graphic overlays and membrane switches are thoroughly tested and inspected before shipment
Flexible Printed Circuit
Material: Polyester witch conductive sliver and Carbon
Rear Adhesive: American3M 467MP, 3M 468MP, 3M9472LE, etc

Performance indicators:

1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --700Ω (According the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force: Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80, Storage temperature: -40 - +85 Humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system..

Production Capacity:

1 Million times
Unit price: Negotiable/
Shipment terms: EXW or FOB
Payment terms: T/T
Origin: Dongguang,China.
Packing: In carton

Add to Basket

Product Description:

Materials	Textured PC, gloss PC with matte finish, Autotype PET and PVC
Thickness	0.5, 0.7, 0.8 and 1.0mm
LED windows	Clear or translucent with all colors
Embossed keys	Polydome and rim
Metal dome	Brand of Nicomatic and Innovan, nickel and gold plated
Tail	With mylar and UV
Connector	Nicomatic, FCI, Molex and Zif
Adhesive	3M 467, 468, 3M9495, 3M7945 and 3M7959
Notice	We have the capacity to provide you membrane switches with other special requirements, such as waterproof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc. Huahongchuang
