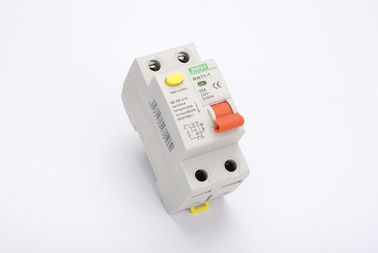

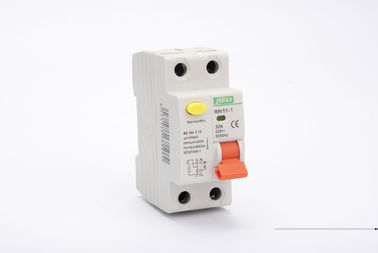

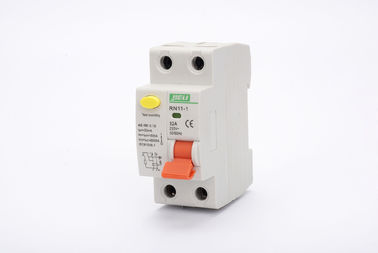

Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design

Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design
Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design

Hình ảnh lớn :  Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design

Thông tin chi tiết sản phẩm:
Place of Origin: Zhejiang, China (Mainland)
Hàng hiệu: JIELI
Chứng nhận: CE/ISO9001/IEC60898
Model Number: RN11-1
Thanh toán:
Minimum Order Quantity: 2400 Piece/Pieces
Giá bán: Negotiable
Packaging Details: Standard Export Carton or According to the Customer
Delivery Time: 15-30days after deposit
Payment Terms: L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability: 1000000 Piece/Pieces per Month
Chi tiết sản phẩm
Rated current(A): 6-63A Rated voltage(V): 230V/400V
Sensitivity (In): 30mA,100mA,300mA



Low Voltage 6A - 63A Residual Current Circuit Breaker With Compact Design





Quick Detail:




Type: Residual Current circuit breaker
Cover: fire proof
Certificate: CE/ISO9001/IEC60898
Current: 6A-63A
Quality level: A
Breaking capacity: 4.5KA, 6KA , 10KA
Point: Silver/cooper
Warranty: 5years



Description:



RN11-1 Residual Current Circuit Breaker are widely used in electrical system. enterprise,post ect.



RN11-1 residual current circuit breaker is characterized by compact design, light weight, long service life, different handle colour for different rated current.


RN11-1 residual current circuit breaker 32A rccb  are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA.





Specifications:







Product name

RN11-1

Standard

IEC61008/GB16196

Product Certifications

CE,CB,3C

Product Function

Leakage protection, Isolation function

Rated current(A)

<25   <40  <63

Pole No

1P+N  3P+N

Rated voltage(V)

230V/400V

Rated frequency(Hz)

50/60

Sensitivity (In)

30mA,100mA,300mA

Environment  temperature

-25°C-+60°C

Connection type

Tunnel style, Pin style, U style

Biggest wiring ability

35mm2

Action  style

AC22

Installation style

35mm standard 35mm guide

Im,Im(A)

500

Inc,Ic(A)

6000

Mechanical life

10000

Protection degree

IP20

Weight(g)

220




Competitive Advantage:




The function of RN11-1 Residual Current Circuit Breaker RCCB
1) Residual Current Circuit Breaker distribute and protect the electrical equipment
2) RN11-1 Residual Current Circuit Breaker is against overload
3) RN11-1 Residual Current Circuit Breaker is in reasonable price.
2  RN11-1 Residual Current Circuit Breaker has high quality
3. RN11-1 Residual Current Circuit Breaker conforms to IEC60898
