Smooth Custom PCB Membrane Switch SGS Gloss Control With 3M Adhesive

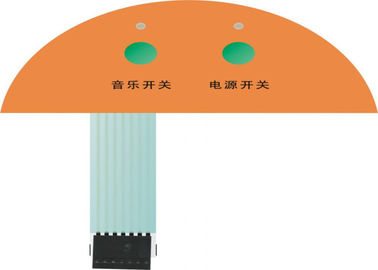

Hình ảnh lớn : Smooth Custom PCB Membrane Switch SGS Gloss Control With 3M Adhesive

Thông tin chi tiết sản phẩm:

Place of Origin:	Dongguan，China
Hàng hiệu:	Foundation
Chứng nhận:	ISO9001:2008RoHS
Model Number:	HC-MS-257

Thanh toán:

Minimum Order Quantity:	100pcs
Giá bán:	Negotiable
Packaging Details:	Polybag per pcs，50per cartoon
Delivery Time:	15-20days
Payment Terms:	T/T or L/C
Supply Ability:	100000Pieces per month

Tiếp xúc

Chi tiết sản phẩm

Điểm nổi bật:

custom membrane switch

membrane switch panel

Smooth Custom PCB Membrane Switch SGS Gloss Control With 3M Adhesive

Description:

EL Circuit for toys
Custom made
Any size and shape available
Energy save product, low power consuming.
Withstand millions of cycles

The main technical parameters of membrane switch

1.Contact resistance: ＜1Ω /cm
2.Insulation resistance: ＜100MΩ (250V DC)
3.operating voltage: ≤ 50VDC
4.working current: 25- 100mA,0-30V DC
5.reliability, service life:＜1 million times
6.operating temperature: -40 ℃ ~ +70 ℃
7.Operating humidity:when40°C,＜98%RH
8.spring time: ≤ 5ms
9.substrate voltage: 2000V DC
10.Tail flexiblility:any angle within 180 degree
11.Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mm

Applications:

Our membrane switches are widely used in :
• 3C Electronics,
• Automobile industry
• Decoration light project
• Art work and gifts
• Commercial usage.
• Public facility

Both OEM and ODM orders are welcome.

Specifications:

1 material : PC/PET
2 High life time :>1million times
3 Pass:ISO9001:2008RoHS.
4 High quality

Initial luminance	≥30-750 CD
Voltage range	AC50V—220V
Frequency	200HZ—1500HZ
Power rate	≤0.8MW/CM
Currency	≤0.15MA/CM
Life span	≥20000Hrs.

Competitive Advantages:

1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Top quality
3. Short lead time.
