Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Operation Temperature: | -40℃～70℃ | Insulation resistance: | ＜100MΩ,250V DC |
|---|---|---|---|
| certificate: | SGS , Rohs | feature: | dust-proof , waterproof |
| adhesive: | 3M467 & 3M468 | material: | PET /PC |
| Điểm nổi bật: | flexible printed circuit boards,flexible printed circuit board |
||
PET Moisture Proof Membrane Switch With 25mA - 100mA Rated Current
Membrane Switch panel, FPC circuit panel Supplier, film switch panel, FPC circuit Supplier, Membrane Switch Supplier, Membrane Switch manufacturer, Flexible printing Circuit switch, name plate, tactile membrane switch, touch screen panel, Graphic overlay, Membrane cont switch board, LED membrane switch panel, Control board, Membrane nameplate. PC overlay.
| rated current | 25-100mA,0～30V DC |
| material | PET /PC |
| Adhesive | 3M467,3M468,and no adhesive |
| Feature | moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof |
| wire lead resistance | ＜1Ω/CM |
| Insulation resistance | ＜100MΩ,250V DC |
Description:

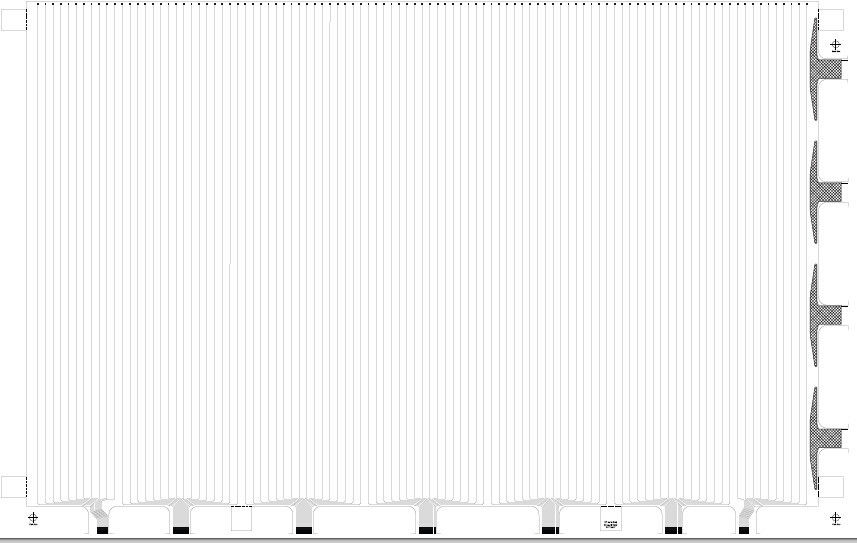

Electronic white board
1) Custom made OEM/ODM
2) Electronic white board curcuit
3) Membrane switch faceplate
4) Withstand millions of cycles
5)perfect exterior
6)metal dome or silicone keypad is also available.
Applications:
Our membrane switches are widely used in :
•Medical Equipment
•Telecommunications apparatus
•Telephone systems
•Household appliances
•Security systems
•Point of sale apparatus
wire lead resistance: | ＜1Ω/CM | Life time: | >1 Million times |
rated current: | 25-100mA,0～30V DC | Operation Temperature: | -40℃～70℃ |
Rated Voltage: | ＜50V, DC | Operation Humidity: | at40℃,＜98%RH |
Insulation resistance: | ＜100MΩ,250V DC | Dome springback time: | ＜5 msec |
Switch travel: | Flat Type 0.05-0.3mm | Base Material voltage withstand: | 1500 V DC |
tactile type:0.3-1.5mm | Tail flexiblility: | any angle within 180 degree |
Specifications:
1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality
Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes
