Backlight Membrane Switch with LGF Light autotype pet and 3M adhesive printing yellow white red color

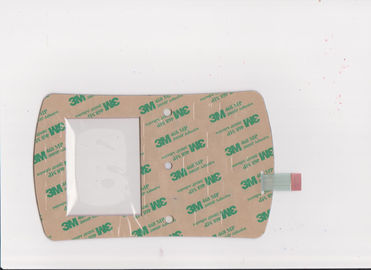

Hình ảnh lớn : Backlight Membrane Switch with LGF Light autotype pet and 3M adhesive printing yellow white red color

Thông tin chi tiết sản phẩm:

Place of Origin:	DongGuan China
Hàng hiệu:	HHC
Chứng nhận:	ISO9001:2008 ,SGS,RoHs etc.
Model Number:	HC-BMS-415

Thanh toán:

Minimum Order Quantity:	100pcs
Giá bán:	Negotiable
Packaging Details:	Within 3 weeks based on MOQ
Delivery Time:	T/T
Supply Ability:	100,000 Piece/Pieces per Month

Tiếp xúc

Chi tiết sản phẩm

Overlay material:

F200

LED color:

White

adhesive:

3M adhesive

Window:

transparent

Điểm nổi bật:

Backlit Membrane Switch

graphic advertisement

LEDs Backlit Memrane switch

each button have two LEDs around on the circuit
even light for every button
high quality with continue ordre from customer
Energy save product, low power consuming.
Withstand millions of cycles
Low voltage

Description:

EL Circuit for toys
1) Custom made
2) Any size and shape available
3) Energy save product, low power consuming.
4) Withstand millions of cycles

Applications:

Our membrane switches are widely used in :
•3C Electronics,
•Automobile industry
•Decoration light project
•Art work and gifts
•Commercial usage.
•Public facility

Specifications:
1 material : EL luminanscent
2 High life time :>1million times
3 Pass:ISO9001:2008RoHS.
4 High quality

Initial luminance	≥30-750 CD
Voltage range	AC50V—220V
Frequency	200HZ—1500HZ
Power rate	≤0.8MW/CM
Currency	≤0.15MA/CM
Life span	≥20000Hrs.

The main technical parameters of membrane switch

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Competitive Advantages:

1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Top quality
3.Short lead time.

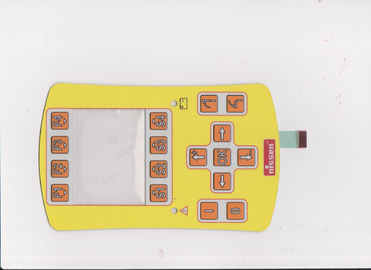

Backlight Membrane Switch with LGF Light autotype pet and 3M adhesive printing yellow white red color 0
